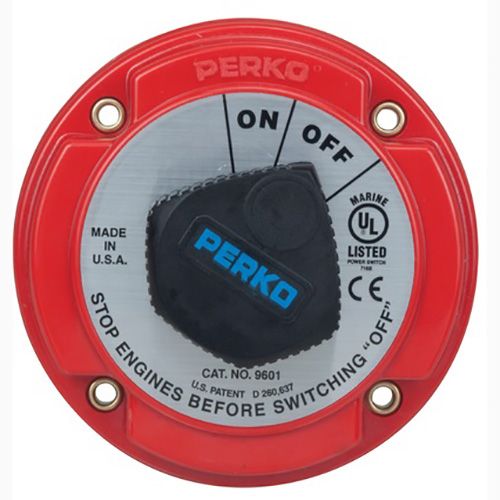

Perko 9601 Medium Duty Battery Disconnect Switch

Perko 9601 Medium Duty Battery Disconnect Switch

Back to catalog
$54.00
On Sale
was $64.00 Save 16%
In stock: 1 available
Product Details

Perko 9601 For use with alternators and generators 6-32 VDC Marine Electrical Systems

Perko 9601 Series battery On-Off switches are among the most popular battery switches ever produced. Their traditional Perko bolt circle makes for easy installation. These switches can be mounted in numerous locations. And as ignition protected switches, they can be installed in the engine rooms of gasoline powered boats.

Battery disconnect switches help manage the overall use of electrical power onboard. They are used to connect or disconnect electrical devices from the electrical system. They help to prevent battery drain during periods of inactivity. They allow for a quick and easy way to shut down the entire electrical system in an emergency.

  • Diameter: 5-1/4"
  • Depth: 2-5/8"
  • Polycarbonate Body with Brass Terminals
  • Ignition Protected
  • For use with 6 to 32 Volt Marine Electrical Systems
  • Capacity - 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
  • Terminal Stud Size: 5/16"
  • When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine running.
